Brand Name : | ZLONE |
Model Number : | ZL-TLPM-600W |
Certification : | CE, ROHS, TUV,UL,ETL,DLC, SAA |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 1000pcs/weeks |
Delivery Time : | 2-3days |
600W highway tunnel lighting,ip66 high power tunnel led light,led
tunnel lights,outdoor tunnel light led TUV DLC ETL,Modular 500w Led
Tunnel Light
New features:
1, Using high-quality LED chip smd 3030 as a light source, energy
saving and environmental protection, compared to traditional light
sources, saving more than 60%.
2, Long life span, can be used in normal environment for more than
5 years.
3, Uniform light and soft, and high brightness. The color rendering
is good, the appearance of the physical color is more accurate, and
various light colors are available, which can meet the needs of
different environments.
4, Quick start, no flickering, no noise.
5, Using a high-efficiency constant-current driver, wide voltage
input, can work in places where voltage is unstable.
6, Lightning strike, the lamp body made of aluminum alloy material,
high strength, corrosion resistance and weather resistance, good
heat dissipation.
7, Green products, using a lead-free and mercury-free process.
8, No radio frequency interference.
We are so proud of our heat dissipation system that helps enhance
the endurance and tolerance of LED tunnel lights. It is true that heat does generated inside any kind of
luminaries. Strong heat will damage the electronics and thus
suppress the brightness and life span. To solve this issue, ZLONE
tunnel lights are equipped with dense fins base plate. It provides
large surface area for passive heat lost. There is seamless
connection between the heat source and the fins to achieve better
effect. Overall, the junction temperature can be maintained at a
low range
Main details of tunnel lighting fixtures 500Watt
1.Basic information
Item Number | ZL-TLPM-600W |
Material | 6063Alumium+LENS |
IP Class | IP65 |
Product Size | L571xW107xH529mm |
Products Weight | 14KG |
Light Source | Lumileds 3030- 1008pcs |
Lifespan | >50,000hours |
Certification | CE,EMC.LVD.ROHS |
Warranty | 5 years |
2.Electrical parameters
Power | 600W |
Input Voltage | AC100-305V,50/60HZ |
Power factor | >0.95 |
Driver efficiency | >87% |
Work Temperature | -20-60 degree |
Work Humidity | 20%-90% |
3.Optical parameters
Lumen | 84000LM |
Colour temperature | 2700-6500k |
CRI | >70, Ra80optional |
Beam Angle | 15°/30°/45°/60°/90° 49*21°/70°*30°/140°*80 |
Lamp efficiency | 130-140lm/w |

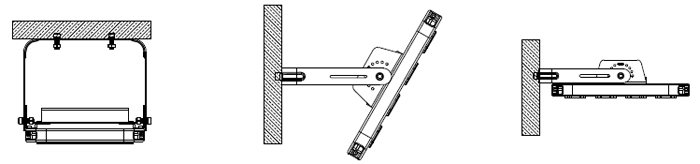

Installation of highway roadway tunnel lights
600Watt tunnel lights explosive picture:
Write to us NOW for more details and data sheets, IES, pictures,
prices for 100W tunnel lights.
email: sales@zloneled.com
More watts/models available for Tunnel Roadway Lighting
Power | LED Brand | Driver Brand | Lumen | Specification | Beam Angle | N.W & Product Size(mm) |
50W | Lumileds / Epistar 3030 - 84pcs | Meanwell HLG/ Sosen Driver | 6500-7000LM | PF: >0.95 CRI:>80 CCT: 2700-6500K Material: 6063 Alu+Lens IP65 5-Year Warranty | 15°/30°/ 45°/60°/90° | N.W:2.3KG L310xW87xH170 |
100W | Lumileds / Epistar 3030 - 168pcs | Meanwell HLG/ Sosen Driver | 13000-14000LM | N.W:3.6KG L310xW87xH228 | ||
150W | Lumileds / Epistar 3030 - 252pcs | Meanwell HLG/ Sosen Driver | 19500-21000LM | N.W:4.5KG L310xW87xH309 | ||
200W | Lumileds / Epistar 3030 - 336pcs | Meanwell HLG/ Sosen Driver | 26000-28000LM | N.W:5.5KG L310xW87xH459 | ||
250W | Lumileds / Epistar 3030 - 420pcs | Meanwell HLG/ Sosen Driver | 32500-35000LM | N.W: 6.5KG L310xW87xH459 | ||
300W | Lumileds / Epistar 3030 - 504pcs | Meanwell HLG/ Sosen Driver | 39000-42000LM | N.W: 8KG L310xW87xH539 | ||
400W | Lumileds / Epistar 3030 - 672pcs | Meanwell HLG/ Sosen Driver | 52000-56000LM | N.W: 11KG L571xW107xH388 | ||
500W | Lumileds / Epistar 3030 - 840pcs | Meanwell HLG/ Sosen Driver | 65000-70000LM | N.W: 12KG L571xW107xH461 | ||
600W | Lumileds / Epistar 3030 -1008pcs | Meanwell HLG/ Sosen Driver | 78000-84000LM | N.W: 14KG L571xW107xH529 |

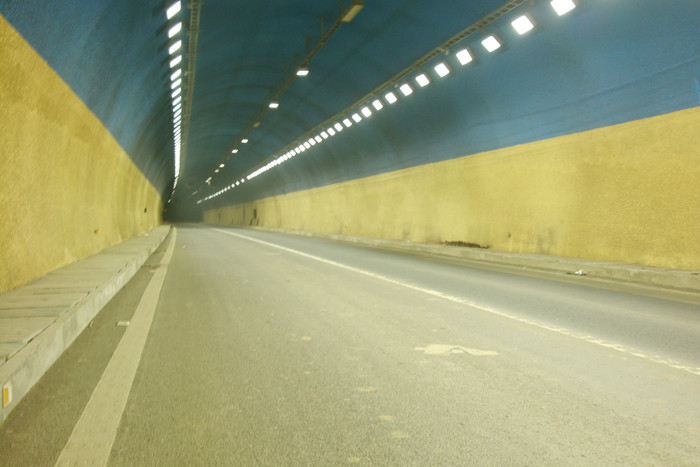

Appliction of tunnel lights:
