Features:
- Unique patent design, TUV-GS, UL, DLC, ERP, CE certified.
- Water-proof, Dust-proof, Damp-proof, Pressure-proof.
- High luminous efficiency 120 -130LM/W.
- Low light decay, L70=50,000 Hours.
- High impact test, IK10.
- Long lifespan 50,000 hours.
- 3 years warranty.
- Energy saving up to 80%.
- Maximum 3M Long for single product .
- Excellent heat dissipation support stable quality.

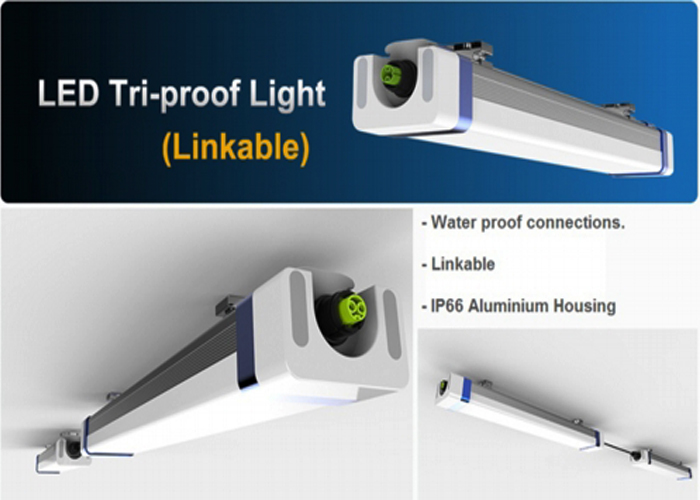

- Convention installation for linking in series.
Main Parameters: ZL-TPL2F30W 2FT=60cm
| TECHNICAL SPECIFICATIONS |
| Housing | Aircraft Aluminum |
| Finish | Silver |
| Mounting | Surface mount brackets |
| Cover | Milky cover |
| Size | 2FT=600*91*74mm |
| ELECTRICAL SPECIFICATIONS |
| LED Engine | Epistar 2835Chips 192pcs |
| Available Watts | 30W |
| Power Factor | >0.95 |
| Ambient Temperature | -20°C ~ +50°C |
| Available Voltages | AC100-277V 50/60Hz standard |
| OPTICAL & PERFORMANCE SPECIFICATIONS |
| Lumen Output | 30W: 3600lm |
| IP Rating | IP66 |
| IK | IK10 |
| Beam Angles | 120° |
| CRI | >80Ra |
| Efficiency | 120-125 ±5%lm/w |
| CCT | 3000~6500K |
| Certifications | FCC, CE, RoHs |
| OPTIONS |
| Cover | Clear/ Frosted Cover |
| Body color | White, Black |
| CRI | >90Ra |
| UGR | <19 |
| Function | 1-10V Dimming | Dali Dimming optional |
| Installation | Suspension, wall mount |
| ADVANTAGES |
| Lighting | Even illumination; Non-glare |
| Cover | UV protection |
| Cost | Cost effective |
| IP Rating | IP65,IP66 |
| Driver | High Quality UL, DLC, CE driver, flicker-free |
| Warranty | 3 Years warranty |
| Installation | Easy to install, firm |
Product Profile
Installation/Mount instruction of tri-proof tube light
Packing information:
| Product | NW/pc | GW/Ctn | Qty/Ctn | Ctn Size(mm) |
| 0.6m/2ft | 1.5kg | 11kg | 6pcs | 655*230*250 |
| 1.2m/4ft | 2.7kg | 18kg | 6pcs | 1255*230*250 |
| 1.5m/5ft | 3.5kg | 20kg | 6pcs | 1555*230*250 |
More triproofs for option:
| Electric Data |
| Model | ZL-TPL2F30W | ZL-TPL3F40W | ZL-TPL4F50W | ZL-TPL4F60W | ZL-TPL5F60W | ZL-TPL5F80W |
| Power | 30W | 40W | 50W | 60W | 60W | 80W |
| Input Voltage | AC 90-277V 50/60Hz | |
| Photometric Specifications |
| LED Brand | EPISTAR/OSRAM SMD LED 3030 |
| Driver Brand | Lifud/AGT Driver |
| CRI | >80 |
| CCT | 2700-6500K |
| PF | >0.95 |
| Beam Angle | 120° |
| Luminous Efficiency | 120-130lm/w |
| Luminous Flux | 3400-3600lm | 4600-4800lm | 5800-6000lm | 6800-7200lm | 6800-7200lm | 9000-9600lm |
| LEDs Qty. | 192pcs | 240pcs | 288pcs | 336pcs | 336pcs | 432pcs |
| Mechanical Specifications |
| IP Rate | IP65 |
| Working Environment | -40℃~50℃,20%~90% H.R |
| Storage Temperature | -40℃~85℃,10%~90% H.R. |
| Body Material | Aluminum + AL PCB |
| Lens Material | PC |
| Dimmable | 0-10V, 1-10V dimmable, PWM dimmable, Daylight Sensor/ Microwave motion sensor/Zigbee |
| N.W. | 1.5KG | 2.1KG | 2.7KG | 2.7KG | 3.9KG | 4.2KG |
| Lamp Size | 600*91*74 mm | 900*91*74 mm | 1200*91*74 mm | 1200*91*74 mm | 1500*91*74 mm | 1500*91*74 mm |
| Lifespan | >50,000 Hours (Ta=30℃@L70) |
| Warranty | 3-Year |
Application
It’s perfect for commercial lighting, warehouse lighting, parking
garage lighting, supermarket lighting,
Awning Back lighting Under canopy and more.
- Underground parking lot, metro station, Subway,Train
station,underground tunnel
- factory, gas station,outdoor playground,airport,indoor stadium
- Garden,Courtyard,and other humid environment etc.
