    80watt led street light, led with meanwell driver, 5-year warranty IP66, led roadway light 80watt, leds

    Ask Lasest Price
    Brand Name : ZLONE
    Model Number : ZL-STL03- 80W
    Certification : CE/ROHS/FCC/SGS/TUV
    Price : NEGOTIABLE
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5000PCS/week
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    80watt led street light, led with meanwell driver, 5-year warranty IP66, led roadway light 80watt, leds

    80watt led street light, led with meanwell driver, 5-year warranty IP66,

    led roadway light 80watt, leds street lamp, led street illuminair.


    Minimalist&Toughness Design

    Minimalist&toughness design ideas bring modern visual effect, angular appearance for lamp,

    with light weight,saving cost for installation & shipping.


    Grain Drying Process & Baking Paint Powder

    The lamp surface treatment with grain drying process & baking paint powder,

    enforce the anti-corrosion&surface strength ability.

    Meanwhile improve better quality sense,creative design,elegant appearance.

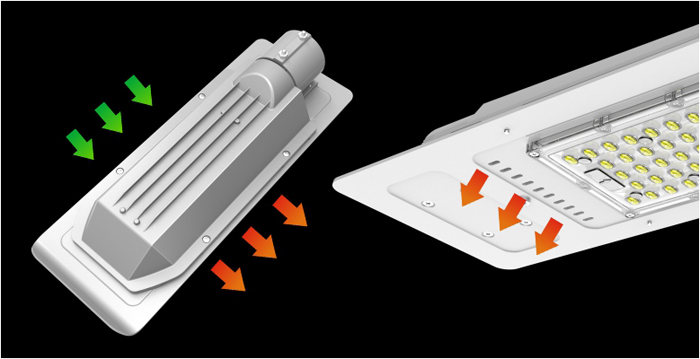

    Optimization of The Cooling Air Duct

    Both sides for street light is not closed completely, separately keep holes to generate air duct,

    make better heat dissipation through air duct; Further to improve the best heat dissipation effect,

    fixture is designed by a row of air vent.

    Product parameter:ZL-STL03-80W

    Model & PowerZL-STL03-80W 80Watt
    Input VoltageAC 90-260V
    Frequency Range50/60HZ
    Power Factor>0.95
    Driver BrandMeanwell/TUV
    LED Quantity77pcs SMD 3030
    LED Consumption80W
    Beam Angle70*140°
    Luminous Efficiency120-130LM/W
    Luminous9000-9600lm
    Color TemperatureWarm white (WW)2800-3000K/3000-3200K
    Natural white (NW)3500-4500K
    Pure white (PW)5500-6500K
    Color Rendering IndexWWRa>75
    NW / PWRa>80
    Working Temperature-30℃ - +50℃
    Resist Lightning surge voltage4KV(without surge protective Device)
    10KV(with surge protective Device)
    IP GradeIP65,IP66
    LED working Life-span>50,000H
    Installation Diameter60mm/40mm optional
    CertificatesCE, RoHS, PSE

    Product Profile Chart:

    More wattages for option

    Electric Data
    Model

    ZL-STL03-

    30W

    ZL-STL03-

    40W

    ZL-STL03-

    60W

    ZL-STL03-

    80W

    ZL-STL03-

    120W

    ZL-STL03-

    150W

    Power30W40W60W80W120W150W
    Input VoltageAC 90-277V 50/60Hz
    Photometric Specifications
    LED BrandSMD LED 3030
    Driver BrandMeanwell Driver
    CRI>80
    CCT2700-6500K
    PF>0.95
    Beam Angle70*140°
    Luminous Efficiency120lm/w

    Luminous

    Flux

    3400-3600lm4600-4800lm6800-7200lm9000-9600lm

    12800-14400

    lm

    16800-18000

    lm

    LEDs Qty.24pcs36pcs54pcs77pcs112pcs144pcs
    Mechanical Specifications
    IP RateIP65
    Working Environment-40℃~50℃,20%~90% H.R
    Storage Temperature-40℃~85℃,10%~90% H.R.
    Body MaterialAluminum + AL PCB
    Lens MaterialPC
    Dimmable (optional)

    0-10V, 1-10V dimmable

    Daylight Sensor/ Microwave motion sensor

    Installation Diameter60mm/40mm optional
    Resist Lightning surge voltage

    4KV(without surge protective Device)

    10KV(with surge protective Device)

    N.W.1.85KG2KG2.9KG2.7KG4.5KG5.8KG
    Lamp Size

    366*135*85

    mm

    366*135*90

    mm

    432*160*90

    mm

    432*160*90

    mm

    632*215*90

    mm

    632*215*90

    mm

    Lifespan>50,000 Hours (Ta=30℃@L70)
    Warranty5-Year

    Application:

    • Urban roads and highways

    • Parking area

    • Residential or insturial fields

    • Parks and commerical areas
