IP65 Emergency Backup Linear High Bay LED Lighting 200 Watt 120° Beam Angle

    Buy cheap IP65 Emergency Backup Linear High Bay LED Lighting 200 Watt 120° Beam Angle from wholesalers

    Buy cheap IP65 Emergency Backup Linear High Bay LED Lighting 200 Watt 120° Beam Angle from wholesalers
    • Buy cheap IP65 Emergency Backup Linear High Bay LED Lighting 200 Watt 120° Beam Angle from wholesalers

    IP65 Emergency Backup Linear High Bay LED Lighting 200 Watt 120° Beam Angle

    Ask Lasest Price
    Brand Name : ZLONE
    Model Number : ZL-HBL-1500-200W
    Certification : CE/RoHS/TUV/SGS/DLC/ETL/UL
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5,000pcs/month
    Delivery Time : 5-7working days
    • Product Details
    • Company Profile

    IP65 Emergency Backup Linear High Bay LED Lighting 200 Watt 120° Beam Angle

    200watt Emergency backup linear high bay led, 200w emergency backup led high bay,
    ip65 emergency backup high bay lighting,emergency back light led

    EMERGENCY FUNCTION
    Build-in battery gear for 2/3 hours, 10W-30W discharge emergency purpose, 30% brightness
    Emergency time optional: 60mins,90mins.120mins or more.
    BENEFITS
    ● Dustproof, waterproof, corrosion proof, moisture proof
    ● Adopt battery back up to keep working for more than 90Min when power off.
    ● Up to 80% energy saving compared to HID high bay.
    ● Lower maintenance cost thanks to over 3 times longer lifetime.
    LED High Bays with emergency backup are designed to apply in situation of power off.
    ZLONE series battery backup LED High Bay Tubes powered by Epistar SMD 2836 or Samsung5630 & Osram LED chips, are to keep the lights working when power off.
    With emergency backup, lights can keep continous working.
    These tubes offer a long lifetime and excellent lumen maintenance to minimize the maintenance costs.
    Features:
    ● 5 years warranty
    ● High CRI of Ra82-85
    ● IP65 waterproof, dustproof, moisture proof, vapor proof, weak corrosion proof
    ● With emergency backup, battery can be charged, lights would be working when power off
    ● Green Diode light to show the emergency function
    ● High luminous efficiency with Epistar 2835,Samsung5630 or Osram chips
    ● Meanwell HLG driver, TUV UL CE certificate, PF>0.9, THD<12
    ● CE RoHS TUV SAA approval

    ZL-HBL-1500-200W = 5ft , 200Watt datasheet

    Total wattage200Watt
    Input voltageAC100~277V / 50~60Hz
    Output voltage37 V
    Driver BrandMeanwell HLG/ ELG optional
    Emergency Power20W,25W,30W
    Emergency Time1Hour, 2Hours,3Hours
    Total harmonic distortion<12
    Photometrical data
    Color temperature2700~6000K
    Led chipHigh Power EPISTAR SMD 2835
    Led Quality1260pcs
    Color rendering index Ra>80Ra
    Nominal luminous flux24,000 -26,000lm
    Average lamp efficiency120-130lm/W
    Starting time<0.5 s
    Rated beam angle(half peak value)120º(50%)
    Temperatures & operating conditions & installation
    Ambient temperature range-40~+50ºC
    Temperature range in operation-40~+50ºC
    InstallationSuspended or Ceiling-mounted
    Lifespan
    Nominal lamp lift time50000 h
    Rated lamp lift time50000 h
    lumen main fact at of nom. lift time0.80
    Dimensions & weight
    Size1500x150x68mm
    Product net weight7.0kg
    Capabilities / OptionalDimmable & Emergency & Motion sensor
    Certificates
    Type of protectionIP65 , IK10 impact resistance
    StandardsTUV,CE and SAA
    Packing
    Qty/Ctn2pcs
    Carton Size1570x240x260mmmm
    CBM/Ctn0.08397m3
    Carton Gross Weight17kg

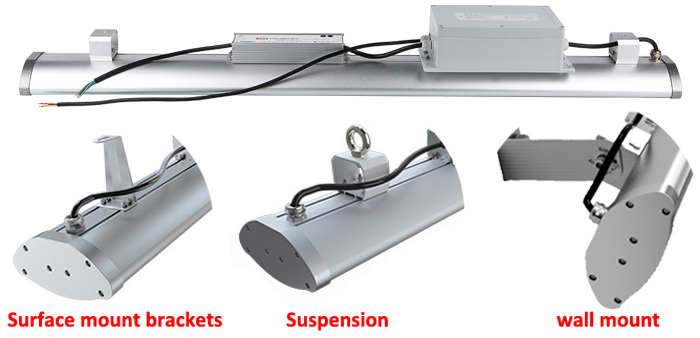

    Installation way: Surface Mount, suspension, wall mount

    Production pictures


    Packing and delivery

    Application:
    Widely used in Airport, Auto Dealership, Education, Healthcare, Distribution, Gymnasiums,
    Industrial & Warehouse, Recreation & Public Venues.
