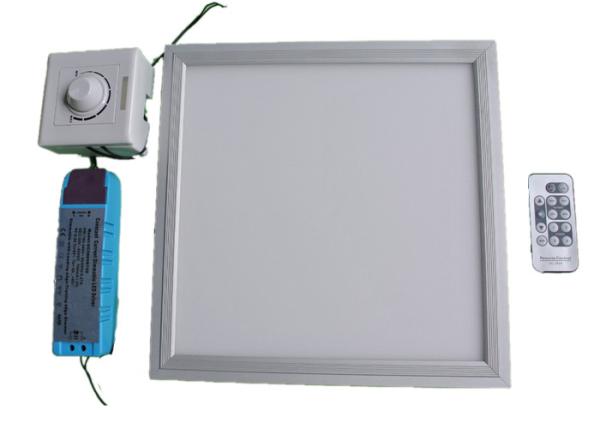

TRIAC dimmable led panel 40W 600x600m led panel light IP44 rating 4000K

Specifications of Dimmable led panel

Technical parameters:

General Parameters:

Features of Dimmable led panel

1. Light distribution design: front light, high brightness, mixed evenly.

2. waterproof, Prevent lampblack, dustproof, anti-mosquito

3. Luminance decrease control No more than 3% control: 2000 hours

4. LED selection:SMD 2835 Hight lumens.

5. Driven design: adopting the designed with high efficiency constant current drive power supply.

6. Product quality: all products before they leave the factory after several strict

7. Pure white.warm white , cool white ,Red,Green Bule, Yellow,and RGB available.

8.200*200mm,300*300mm,300*600mm,300*1200mm,600*600mm,600*1200mm available.

9.Energy saving, Environmental friendly

10.Light and Soft, no electric wave,no RF interference.

11. Can be dimming

12.Long service life over 50000 hours

Our advantages of Dimmable led panel

• Conforming to CE RoHs
• Environment-friendly and no UV or IR radiation.
• Extruded aluminum is good at heat dissipation, surface temperature usually stay below 65°.
• Wide range of available operating voltage and low consumption.

Intruduction about TRIAC DIMMING PANE LIGHT

TRIAC Dimming LED Light panel

TRIAC, from Triode for Alternating Current, is a genericized tradename for an electronic component that can conduct current in either direction when it is triggered (turned on), and is formally called a bidirectional triode thyristor or bilateral triode thyristor.

TRIACs belong to the thyristor family and are closely related to Silicon-controlled rectifiers (SCR). However, unlike SCRs, which are unidirectional devices (i.e. can conduct current only in one direction), TRIACs are bidirectional and so current can flow through them in either direction. Another difference from SCRs is that TRIACs can be triggered by either a positive or a negative current applied to its gate electrode, whereas SCRs can be triggered only by currents going into the gate. In order to create a triggering current, a positive or negative voltage has to be applied to the gate with respect to the A1 terminal (otherwise known as MT1).
Once triggered, the device continues to conduct until the current drops below a certain threshold, called the holding current.
The bidirectionality makes TRIAC very convenient switches for AC circuits, also allowing them to control very large power flows with milliampere-scale gate currents. In addition, applying a trigger pulse at a controlled phase angle in an AC cycle allows one to control the percentage of current that flows through the TRIAC to the load (phase control), which is commonly used, for example, in controlling the speed of low-power induction motors, in dimming lamps and in controlling AC heating resistors.

SHEN ZHEN ZLONE LIGHTING CO., LTD was established in 2008, is a rapid growing enterprise and now becomes one of the leading LED Light manufacturers and suppliers in China.

ZLONE has professional production process and professional techniques, equipped with advanced production equipment such as Surface Mounting Machine, Automatic Soldering Machine, Advanced testing machine and also built an IES dark room and a modern production workshop, which passed ISO9001:2008 quality management system certification.

ZLONE has also developed our own way of LED lighting Quality Inspection System, We apply advanced temperature testers, luminance testers and photoelectric instruments to conduct strict testing such as: voltage withstand, shock proof and erosion tests…ect. All our operations are international standard certified. Most of our products have got CE,ROHS,TUV,GS,ETL/UL approved and many other international certifications.

Our expert R&D team has abundant knowledge and experiences in electric components & LEDs, Dialux prototype, thermal management and industrial design.We’re capable of developing new models and complete a sample for you within 10-15working days. All designs strictly follow the UL and EU electrical safety standards and ERP Directive.

ZLONE has an excellent overseas sales and after-sales team .We export to South/ North America, Europe and Oceania. Our whole team will keep on providing the best service to our valued customers. We warmly welcome customers from domestic and abroad cooperate with us for mutual benefit and common development.
