China Led Supplier CE Led Panel Light 600x600mm Led Panel 85LM/w
Ra>85
Features:
1. Material: superior aluminum alloy and high quality acrylic plate
(PMMA).
2. Operating Voltage: low voltage DC38-42V
3. Input Voltage:AC100V~AC260V available
4. Light source: low power EPISTAR SMD LEDs (placed in the edge of
the plate)
5. Color Rendering Index Ra >80
6. Uniformity of light color: ≥ 90%
7. Lifespan: ≥ 50000h (8 years using validity)
8. Beam angle: 120 degree
9. Color: White (various colors available)
10. Color temperature: 2700K-7000K (Optional, according to your
requirement)
11. Ambient temperature: -20℃~85℃
12. Edge-lit methods, with advanced light guide technology.
13. Low heat and more environment protection.
14. No stroboscopic, no pollution, long lifespan, low luminous
decay.
15. Quickly start (0.01second) and the light is natural and soft,
appearance is exquisite,
16. CE, FCC, RoHS approved, with 3 year quality warranty.
40W 600x600mm flat panel main details:
600*600mm(40W) Led panel Description |
Item No. | LED Quantity | Light Source | Power | Luminous Flux | Size(mm) |
ZLP060640WS | 192PCS | SMD 2835 EPISTAR | 40W | Cool White | 3200LM | 595*595*10mm |
Pure white | 3100LM |
Warm White | 3100LM |
Input Voltage : | 100 - 260V AC 50Hz -60Hz |
Power Factor: | ≥0.96 |
LED Chip Type: | EPISTAR |
Color Temperature: | 2700-3500K (Warm white), 4000-4500K (Natural
White),,6000-6500K(Cold white) |
Color Rendering Index: | Ra>80 |
Beam Angle : | 120° |
Operating Temperature | (-10℃ to +40℃) |
Storage Temperature: | (-20℃ to +85℃) |
Humidity Operating: | 10-80% |
Material : | (6063)Aluminum body + PMMA+LGP |
Lifespan : | 50,000 hours |
Net Weight (kgs): | 4kgs |
Accessory: | CE/RoHS/TUV/FCC/SAA Approved Power Supply(110-270VAC to DC38-42V) |
Fixing Ways: | Built-in/Mounted/Suspending/Recessed |
Certificates: | CE/RoHS |
IP Code: | IP 44 |
Warranty: | 3 Years |

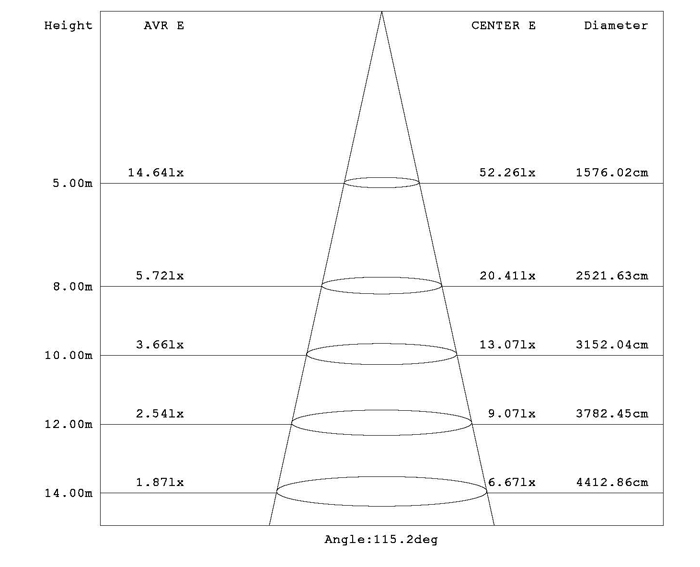

IES Test report for 40W
Application:
Replacement for conventional down light lamp in
Hotels
Conference / Meeting rooms
Offices
Commercial Complexes
Residential / Institution Buildings
Schools, Colleges, Universities
Hospitals, etc.
