Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom

    Buy cheap Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom from wholesalers

    Buy cheap Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom from wholesalers
    • Buy cheap Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom from wholesalers
    • Buy cheap Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom from wholesalers
    • Buy cheap Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom from wholesalers

    Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom

    Ask Lasest Price
    Brand Name : ZLONE
    Model Number : ZLRP120406WR
    Certification : SAA TUV CE ROHS UL
    Price : Negotiable
    Payment Terms : , T/T, Western Union
    Supply Ability : 50000pcs/Month
    Delivery Time : 5-7working days
    • Product Details
    • Company Profile

    Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom

    Ultra Thin Dimmable Round Surface Mounted LED Panel 6W 12W 18W for Kitchen Bedroom



    Advantages and features:


    1. Save up more than 80% power consumption .
    2. Brand New High quality .
    3. No UV radiation, No RF interference, No flashing and shockproof .
    4. Safe and long lifespan, over 50,000 hours, low pressure constant current driver .
    5. Wide range of applications, easy installation, low maintenance costs.
    6. panel indicator lights


    Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom


    Details

    Model NumberZLRP120406WRInstallation

    Surface Mounting

    View Angle

    120°

    BrandZLONESizeΦ120*40mmPower factor

    >0.95

    Lamp Power(W)6WLuminous Efficiency85lm/wDriver Type

    Isolated Constant current driver

    Luminous Flux(lm)420-480LMCRI>80Input Voltage:

    85V~265V AC

    50/60Hz

    CCT2700-6500KLED QTY30pcsWarranty

    2Years

    IP GradeIP44

    LED Light Source

    SMD2835LED BrandEPISTAR
    Working Lifetime50000HoursWorking Temperature-25℃ - +55℃Certification

    CE, EMC, LVD, RoHS,TUV,SGS


    Driver used for the panel- Isolated constant current driver.


    Available Models:

    Product Name &SizeModel&
    CCTInput
    Voltage
    Lumen FluxCRIView AngleLed Brand & TypeNote
    12W
    LED Surface Mounted Panel
    Φ170*40mm
    ZLRP1704012WR
    ZLRP1704012WS
    3000K
    4000K
    6000K
    100-260V AC 50/60Hz880-960LM>80120°SMD 2835
    EPISTAR
    IP40
    CE/RoHs
    Surface mount
    WHITE Frame
    2-Year Warranty
    18W
    LED Surface Mounted Panel
    Φ225*40mm
    ZLRP2254018WR
    ZLRP2254018WS
    3000K
    4000K
    6000K
    100-260V AC 50/60Hz1450-1650 LM>80120°SMD 2835
    EPISTAR
    IP40
    CE/RoHs
    Surface mount
    WHITE Frame
    2-Year Warranty
    24W
    LED Surface Mounted Panel
    Φ300*40mm
    ZLRP3004024WR
    ZLRP3004024WS
    3000K
    4000K
    6000K
    100-260V AC 50/60Hz2000-2100LM>80120°SMD 2835
    EPISTAR
    IP40
    CE/RoHs
    Surface mount
    WHITE Frame
    2-Year Warranty
    48W
    LED Surface Mounted Panel
    Φ600*40mm
    ZLRP6004048WR
    ZLRP6004048WS
    3000K
    4000K
    6000K
    100-260V AC 50/60Hz3300-3500 LM>75120°SMD 2835
    EPISTAR
    IP40
    CE/RoHs
    Surface mount
    WHITE Frame
    3-Year Warranty

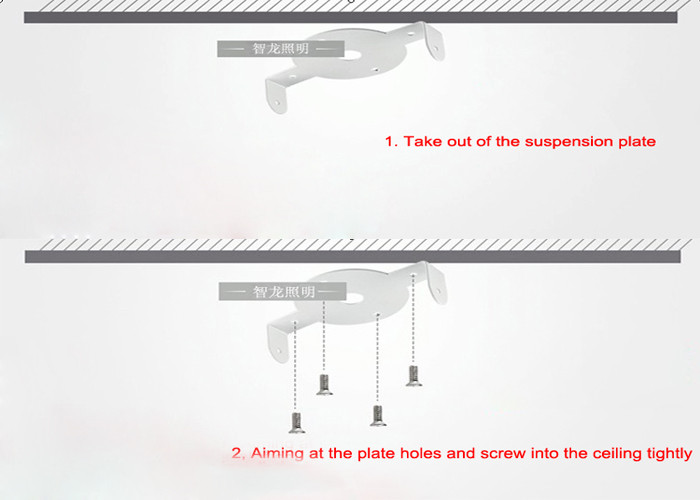

    Installation:

    Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom

    Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom


    Cautions

    Switch off power before replaceing lamp.

    Keep away from direct sunshine and high temperature.

    If any doubt about installation or use of product, consult electrician.


    Application:
    1. Lighting for home, hotel, shopping mall, school, office, hospitals, library etc;
    2. Decoration for park, arena, hotel, supermarket, festive lamp etc.


    Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen BedroomUltra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom
