1600LM 18W surface mounted led lighting fixtures , suspended led light panels 90 - 260V AC

    Buy cheap 1600LM 18W surface mounted led lighting fixtures , suspended led light panels 90 - 260V AC from wholesalers

    Buy cheap 1600LM 18W surface mounted led lighting fixtures , suspended led light panels 90 - 260V AC from wholesalers
    • Buy cheap 1600LM 18W surface mounted led lighting fixtures , suspended led light panels 90 - 260V AC from wholesalers

    1600LM 18W surface mounted led lighting fixtures , suspended led light panels 90 - 260V AC

    Ask Lasest Price
    Brand Name : ZLONE
    Model Number : ZLRP2254018WS
    Certification : CE ROHS TUV FCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000pcs/Month
    Delivery Time : 5-7working days
    • Product Details
    • Company Profile

    1600LM 18W surface mounted led lighting fixtures , suspended led light panels 90 - 260V AC

    18W Surface Mounted Square Led Light Panel with CE For home and office Application1600LM


    Main parameters:

    Model NumberZLRP2254018WSInstallation

    Surface Mounting

    View Angle:

    120°

    BrandZLONESize:Φ225*40mmPower factor:

    >0.95


    Lamp Power(W):18WLuminous Efficiency85lm/wDriver Type

    Isolated Constant current driver


    Luminous Flux(lm):1450-1650LMCRI>80Input Voltage:

    85V~265V AC 50-60Hz


    CCT2700-6500KLED QTY:90pcsWarranty :

    2Years

    IP GradeIP40

    LED Light Source:

    SMD2835LED BrandEPISTAR
    Working Lifetime50000HoursWorking Temperature-25℃ - +55℃Certification:

    CE, EMC, LVD, RoHS,TUV,SGS




    Features:

    surface mounted led panel light flat
    1.High lumens 1200lm
    2.SMD2835 60pcs led chips
    3.Dimmable Supported
    4.18W Round / Flat shape

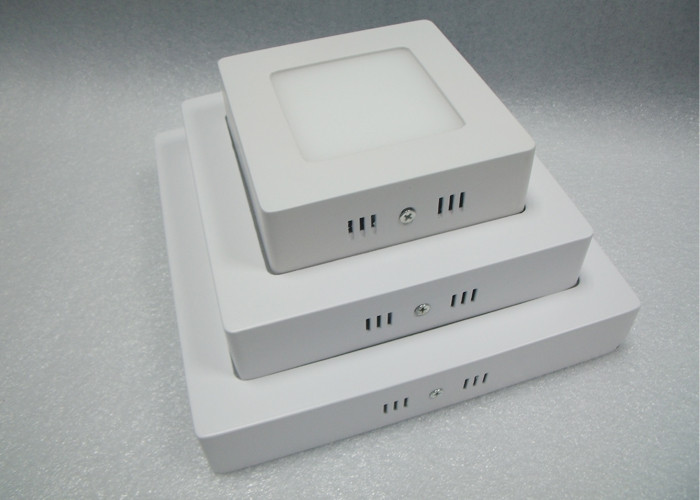

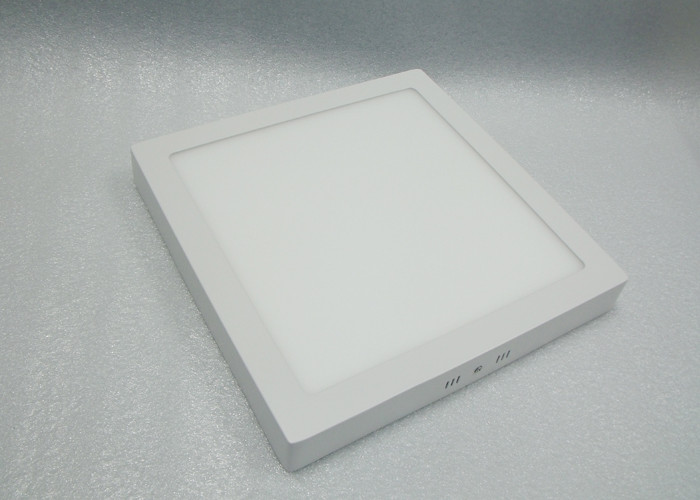

    Photos of 18W Flat
    1600LM 18W surface mounted led lighting fixtures , suspended led light panels 90 - 260V AC1600LM 18W surface mounted led lighting fixtures , suspended led light panels 90 - 260V AC
    Available Models:

    Product Name &SizeModelCCTInput
    Voltage
    Lumen FluxCRIView Angle

    Led Brand

    & Type

    Note
    6W
    LED Surface Mounted Panel
    Φ120*40mm
    ZLRP120406WR
    ZLRP120406WS
    3000K
    4000K
    6000K
    100-260V AC 50/60Hz360-420LM>80120°SMD 2835
    EPISTAR
    IP40
    CE/RoHs
    Surface mount
    WHITE Frame
    2-Year Warranty
    12W
    LED Surface Mounted Panel
    Φ170*40mm
    ZLRP1704012WR
    ZLRP1704012WS
    3000K
    4000K
    6000K
    100-260V AC 50/60Hz880-960LM>80120°SMD 2835
    EPISTAR
    IP40
    CE/RoHs
    Surface mount
    WHITE Frame
    2-Year Warranty
    18W
    LED Surface Mounted Panel
    Φ225*40mm
    ZLRP2254018WR
    ZLRP2254018WS
    3000K
    4000K
    6000K
    100-260V AC 50/60Hz1450-1650 LM>80120°SMD 2835
    EPISTAR
    IP40
    CE/RoHs
    Surface mount
    WHITE Frame
    2-Year Warranty
    24W
    LED Surface Mounted Panel
    Φ300*40mm
    ZLRP3004024WR
    ZLRP3004024WS
    3000K
    4000K
    6000K
    100-260V AC 50/60Hz2000-2100LM>80120°SMD 2835
    EPISTAR
    IP40
    CE/RoHs
    Surface mount
    WHITE Frame
    2-Year Warranty
    48W
    LED Surface Mounted Panel
    Φ600*40mm
    ZLRP6004048WR
    ZLRP6004048WS
    3000K
    4000K
    6000K
    100-260V AC 50/60Hz3300-3500 LM>75120°SMD 2835
    EPISTAR
    IP40
    CE/RoHs
    Surface mount
    WHITE Frame
    3-Year Warranty



    Installation guidance
    1600LM 18W surface mounted led lighting fixtures , suspended led light panels 90 - 260V AC
    1600LM 18W surface mounted led lighting fixtures , suspended led light panels 90 - 260V AC



    Application of surface mounted led panel lights:
    1. Hotels
    2. Conference/Meeting rooms
    3. Factories & Offices
    4. Commercial Purposes
    5. Residential / Institution Buildings
    6. Schools, Colleges & Universities
    7. Hospitals

    1600LM 18W surface mounted led lighting fixtures , suspended led light panels 90 - 260V AC1600LM 18W surface mounted led lighting fixtures , suspended led light panels 90 - 260V AC
