Germany size dali dimmable panel 620x620mm,615x615mm dali dimming
panel IP44
620x620 Commercial LED Flat Panel Light
1. 85 lumens / Watts
2. High CRI, Ra>80
3. Over 50% energy saving against florescent
4. 50,000 hours mininum life expectancy
5. 3 years extended warranty
6. 1-10v dimmable and remoted dimmable versions are avaliable
7. Easy to clean wipeable surface
8. Color Temperature dimmable, cct changing panel
9. Tuv ceritificate 620x620mm size for germany market.
Our advantages of Dimmable led panel
Conforming to CE%RoHs.
Environment-friendly and no UV or IR radiation.
Extruded aluminum is good at heat dissipation, surface temperature
usually stay below 65°.
Wide range of available operating voltage and low consumption.
Specification of 54W 620x620cm dimmable led panel with 3 years
warranty
Electrical Data |
Rated wattage | 54W |
Nominal wattage | 55W |
Nominal voltage | AC 100-277V |
Power factor λ | 95% |
Operating frequency | 50-60 Hz |
Energy consumption | 35kWh/1000h |
Light technical data
Nominal luminous flux | 4400 lm |
Rated luminous flux | 4600lm |
Color temperature | 2800-3200K |
Light color as per EN 12464-1 | Warn white |
Color rendering index CRI | 83 |
Standard deviation of color matching | ≤3 sdcm |
Starting time | ≤0,1 s |
Warm-up time (60 %) | 0,0 s |
Lumen main. fact. at end of nom. life time | 70 % min. |
Lumen maintenance at end of service life | 70 % min. |
Farben & Materialien |
mercury and lead-free | Yes |
lifespan
Nominal lamp life time | 50,000 hours |
Rated lamp life time | 40,000 hours |
Switching cycles (on/off) | 100,000 |
Additional factor
Installation type | Recessed/Suspended/Surface mounting |
Capabilities |
Dimmable (standard power adapter) | No |
Dimmable (dimmable power adapter) | Yes |
Certificates & standards
Energy efficiency class | A+ |
Dimensions |
Actual Size | 620*620mm |
Thickness | 10mm |
Packing Size | 71*71*25 5pcs/CTN |
G.W | 4.5kgs |

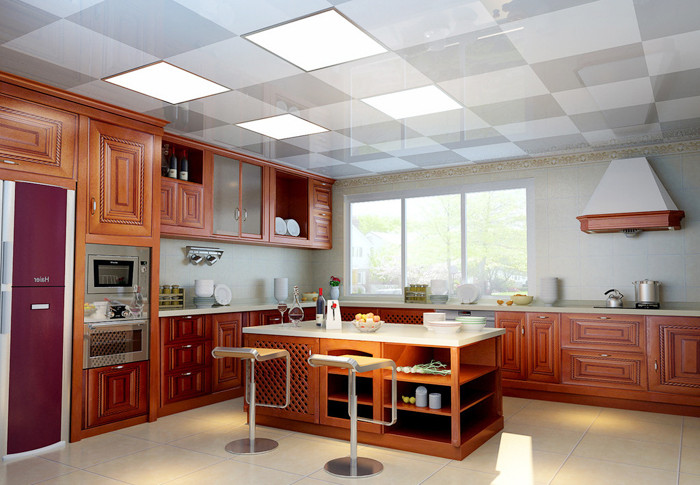

3. Application of LED Panel Light
1. Public lighting: Schools, Library, Reading room
2. Commercial lighting: Supermarket, stores, shopping mall, office,
meeting room
3. Industril lighting: Factories, warehouses, production line.
