Brand Name : | ZLONE |
Model Number : | ZLRP3004024WRRE |
Certification : | CE ROHS TUV SGS SAA FCC |
Price : | negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 50000pcs/Month |
Delivery Time : | 7-10working days |
24W 3000K Surface Mounted Rechargeable Emergency Led Light Panel CRI85 CE RoHs
Emergency Led Light Panel Specification:
Part No. | ZLRP3004024WRRE | |
Optics Parameters | Light Source | 120pcs SMD2835 EPISTAR |
Luminous Flux(lm) | 2100LM | |
CCT(K) | warmwhtie(3000K)/white(6000K)/ Neturalwhite4000K | |
CRI(Ra) | more than 80Ra | |
Beam Angle | 120 degree | |
Light Attenuation ratio (%) | less than 3% in 30,000Hrs | |
Lifespan (Hrs) | more than 50,000Hrs | |
Electric Parameters | Input Voltage(V) | 85-265Vac |
Frequency(Hz) | 50/60 Hz | |
Input Current(mA) | 86mA (@ 220 Vac ) | |
Total Power(W) | 24W | |
Power Factor | 0.95 | |
Turn-on Time(S) | less than 0.05 S (@ 220Vac) | |
Dielectric Voltage Withstand Test | 3750Vac/1min | |
Structure Parameters | Material | Aluminum+ PMMA |
Size(mm) | 300mm*40mm | |
Net Weight(g) | 125KG | |
Water Proof(IP) | Indoor Use Only IP44 | |
Integrated Parameters | Operating Temperature | -40 ~ +55 Centigrade |
Storage Humidity | 0% ~ 95%R.H. | |
Dimmable | Optional |
Feature Emergency Led Light Panel
1.New generation LED Panel Light adopts qualified super bright LED
as light source, which is stable, long life and no UV & IR
emission.
2.The anodized aluminum frame is stylish and fashionable with
everlasting color.
3.It is powered by low voltage constant current driver, which is
safety, energy saving and long life.
4.LED Panel light is the ideal replacement for traditional grid
lights and fluorescent tubes. Moreover, the Panel light creates
extremely harmonies and uniform lights, which conventional light
never achieved.

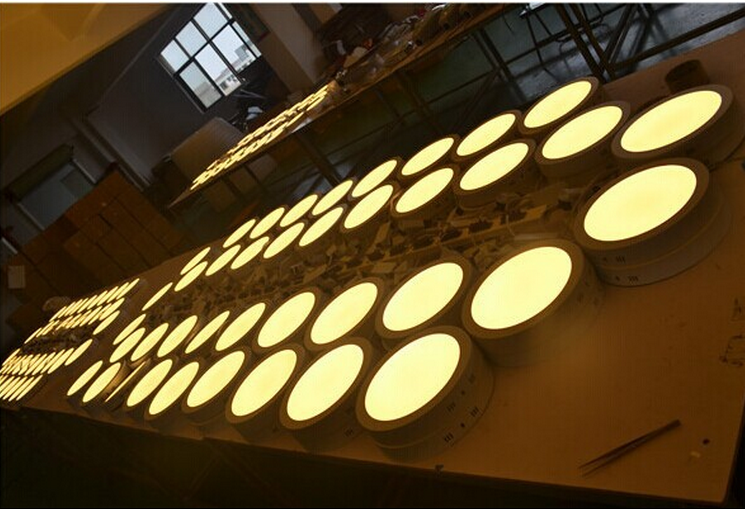

Product Photos:
More sizes available:
Isolated Constand Current Driver used with High Voltage/Current Protection and PF>0.5
Supplier of WESTINGHOUSE:
Applications:
![]() |
