Surface Mounted 48w Led Panel Lamp 600x600 Led Ceiling Panel
Description for LED Panel light
LED panel lamp is a high-grade lighting lamps, light by LED
lighting source. The outside borders made by anodic oxidation
aluminum alloy. Design of LED panel light is beautiful and concise,
atmospheric luxury. Good lighting effect can make person feeling
good. Unique inside design, light after high light transmittance of
guide plate to form a uniform plane light effect, good intensity of
illumination uniformity, soft and comfortable, can release eyes
fatigue effectively. LED panel light also can prevent radiation,
friendly to the pregnant women, the elderly and children's skin.
Specification for 600mm round surface mount panel 48W
Part No. | ZLRP6004048WR |
Optics Parameters
| Light Source | 288pcs SMD2835 EPISTAR |
Luminous Flux(lm) | 3400-3600LM |
CCT(K) | warmwhtie(3000K)/white(6000K)/ Neturalwhite4000K |
CRI(Ra) | more than 80Ra |
Beam Angle | 120 degree |
Light Attenuation ratio (%) | less than 3% in 30,000Hrs |
Lifespan (Hrs) | more than 50,000Hrs |
Electric Parameters | Input Voltage(V) | 85-265Vac |
Frequency(Hz) | 50/60 Hz |
Input Current(mA) | 950mA (@ 220 Vac ) |
Total Power(W) | 48W |
Power Factor | 0.95 |
Turn-on Time(S) | less than 0.05 S (@ 220Vac) |
Dielectric Voltage Withstand Test | 3750Vac/1min |
Structure Parameters | Material | Aluminum+ PMMA |
Size(mm) | 600mm*40mm |
Net Weight(g) | 4.7KG |
Water Proof(IP) | Indoor Use Only IP44 |
Integrated Parameters | Operating Temperature | -40 ~ +55 Centigrade |
Storage Humidity | 0% ~ 95%R.H. |
Dimmable | Optional |

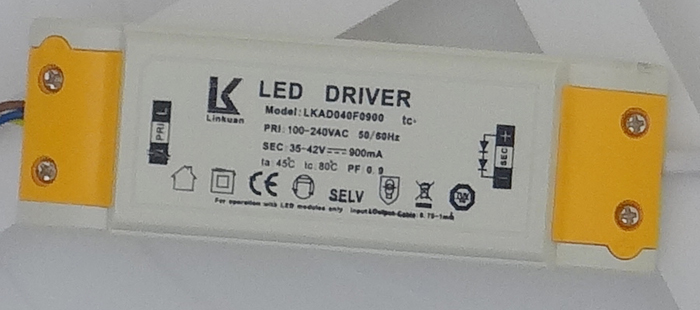

About the Driver:
Driver used Isolated Constant Current Driver with PF>0.95,
THD<15%, CE/RoHS approval
3-Year warranty.
Quality key point:
3400-3600LM
288pcs SMD2835 EPISTAR
About the Driver:
Driver used Isolated Constant Current Driver with PF>0.95,
THD<15%, CE/RoHS approval
3-Year warranty.
IES Test result:
48W 600mm round surface mounted panels in production/aging test.
Application:
1.lighting projects, banks, hotels, schools, bookstores, sports and
other lighting
2.Exhibition,Fashionable dress act ;
3.Furniture, lighting, commercial lighting, museums, exhibition
lighting
4.High-class stores,shopping malls;
5. Restaurant,Shopping Mall;
