    Super Bright 400w Tunnel Led Lighting Bridgelux Chip 100-110lm / W

    Ask Lasest Price
    Brand Name : ZLONE
    Model Number : ZL-TL920-400W
    Certification : CE/ROHS/FCC/SAA/UL
    Price : Negotiation
    Payment Terms : Western Union, MoneyGram, T/T, L/C
    Supply Ability : 5000PCS/Week
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

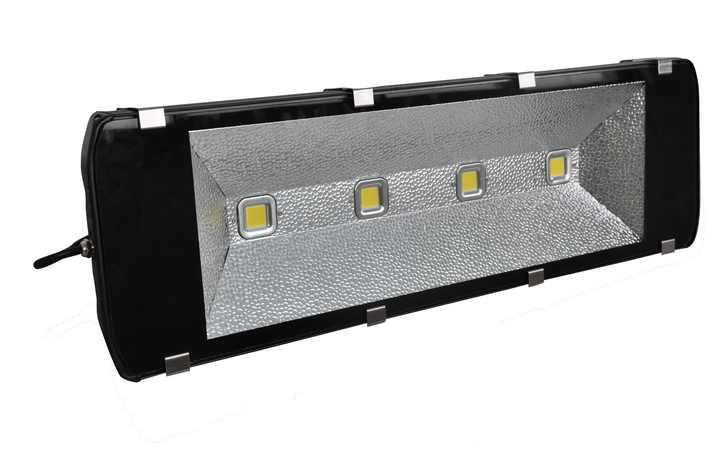

    Super Bright 400w Tunnel Led Lighting Bridgelux Chip 100-110lm / W


    Super Bright 400w Tunnel Led Lighting Bridgelux Chip 100-110lm / W



    ZL-TL920-400W Main Technical Parameters

    Input voltage

    AC85V-265V

    Product Picture

    Frequency range

    50Hz-60Hz

    High Brightness 200W LED Tunnel Light for Warehouse with Big Heat Sink CE RoHS FCC

    Total harmonic distortion

    ≤9%

    Power factor

    >0.98

    LED work voltage

    DC30-36V

    LED quantity

    4PCS

    LED power consumption

    400W

    Total power consumption

    410W

    LED lamp output lumen

    85-90LM/W

    LED lamp output lumens

    Warm white

    19,000LM

    Product Size

    Pure white

    20,000LM

    High Brightness 200W LED Tunnel Light for Warehouse with Big Heat Sink CE RoHS FCC

    Cool white

    19,400LM

    Lamp efficiency

    >90%

    Average illuminance

    Height 6M

    >227.4LUX

    Height 8M

    >175.9LUX

    Height 10M

    >125.9LUX

    Illuminance area

    Height 6M

    26*24m Rectangle

    Height 8M

    32*31m Rectangle

    Height 10M

    37*36m Rectangle

    Illuminance uniformity

    >0.7

    CCT

    Warm white

    2700K-3500K

    Pure white

    4500K-5500K

    Cool white

    6000K-7000K

    Color index

    Warm white

    Ra>70

    Pure white, Cool white

    Ra>70

    Light distribution

    Symmetric / Rectangle Spot

    Light design

    LED+Reflector

    LED junction temperature

    ≤70℃

    Work environment

    -40℃——+45℃

    Storage environment

    -40℃——+65℃

    Distribution Curve Flux

    Protection class

    IP65

    High Brightness 200W LED Tunnel Light for Warehouse with Big Heat Sink CE RoHS FCC

    LED lifespan

    >50,000hrs

    PSU connection

    Brown

    L (live line)

    Blue

    N (null line)

    Yellow or Green

    G (ground line)

    Color of the shell

    Black

    Certificates

    CE/RoHS/FCC

    N.W/G.W/pcs(Bracket included)

    18.6Kg/21.74Kg

    Packing/pcs(Bracket included)

    100*37*28.5cm



    Feature:

    1. Usage of 4 pieces high power 100W LED as the source of light, with a unique lighting design made of multiple chips integrated in a single module. Based on a selection of excellent imported semiconductor chips, it has high thermal conductivity, low luminous decay, pure colors, no heavy shade etc.
    2. Unique cooling body design combined with perfect driver box to help heat conduction and diffusion, this reduces efficiently the temperature of the lamp body and so provides to the LED and its power supply a longer lifespan.
    3. Sandblasting process and anodic oxidation surface treatment applied to the cooling body providing to the lamp an elegant and compact overall structure.
    4. Environmentally friendly, it contains no lead, no mercury or any other elements that may harm the environment.
    5. High color rendering level that shows true colors of things to people. Several colors are also available to meet specific requirements, delivering different kinds of atmosphere, reducing the depressive mood from traditional lamps with uneven color temperatures, improving work efficiency with better visual comfort.
    6. Advanced constant current and voltage control techniques, wide power adaptation coverage to fit all countries specificities, management of electrical unstable factors with a power grid and noise pollution with ballast, high lighting stability delivered avoiding unnecessary additional work effort for the eyes and thus preventing from eyestrain.
    7. Excellent decoration integration, unique surface treatment technology, modern design, easy installation, simple dismount, wide range of applications.


    Application
    Tunnel, train, archway of bridge, culvert, bus station, undergroud parking garage, gymnasiums, yards, advertising boards,buildings, lawns, garden designs and so on for outdoor
