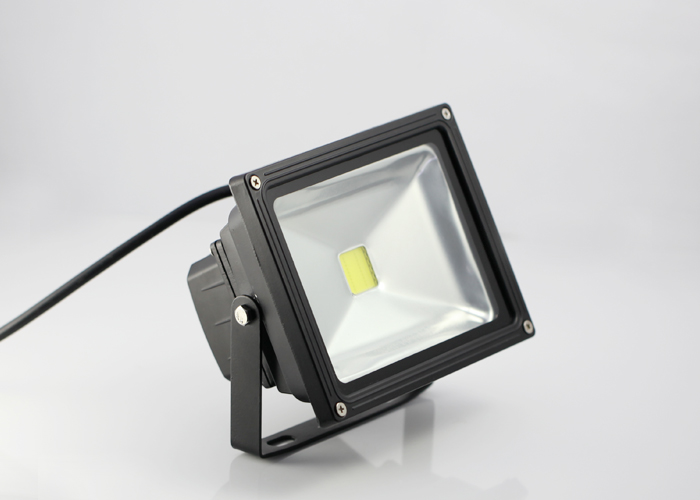

COB Bridgelux Chip Outside Led Flood Lights 20 Watt 2800 - 6500k
20w led flood light Features:
1- Low electricity consumption, your electricity bill will be cut
down 70-80%..
2- Long life span: Above 50,000Hrs, almost 15 years use..
3- Environment friendly, no UV and infrared radiation, no risk of
mercury emission.
4- Vibration resistant, Easy to transport and install.
5- It is ideal for replacing haligen lamp.
6- No maintenance cost.
7- Different color: White,Yellow,Red,Green,Blue are oppotional.
Parameters:
| Model No. | ZL-FL225-20W LED Flood light |
| Power(W) | 20W |
| LED Chips | 1*20W Epistar or Bridgelux |
| Input Voltage(V) | AC 85V - 256 V 50 - 60HZ |
| Working Voltage(V) | DC 24 - 30.4 V |
| Lumens(lm) | 90-100lm/W |
| Lamps Efficiency | >85% |
| illuminance uniformity | >0.5 |
| CCT(K) | WW | 2800 - 3200 K |
| NW | 3500 - 6500 K (4000-4500K and 5000 - 5500K Most) |
| CW | 6500 - 7000 K |
| Color Rendering Index | WW | >70 |
| NW & CW | >75 |
| Power Factor | >0.9 |
| Power efficiency | >90% |
| Working Life | >50000H |
| Working T | -40℃ ～ +55℃ |
| Storage T | -25℃ ～ +65℃(25℃best) |
| IP Rating | IP65 |
| Beam Angle | 120° |
| Connect Wire | L Power Wire Brown Color |
| N Null Wire Blue |
| G Earth Wire |
| Certificate | IEC CE RoHs IP65 |
| Lamp Shell Color | Black & Grey |
| Warranty | 3-Year |
Using directions:
Because there have the glass fittings, please handle with care when
storing up or carrying .strain stress should be avoided.
Using directions for installation:
1, fix the light on the pole or the mounting surface by screw
though the holes(¢10mm) of the installing support；
2, after the light be fasten,the screws 1A and 1b could be
loosen,and then change the angle of the installing support so that
the installation angle of the light would be adjusted.；
3, keep the light in suitable operation and storage temperature；
4, In order to avoid the electrocution the interface between the
wires could be fully-closed when fixing the light.
5,The corresponding measures could be take for the waterproof and
avoid leak, when the external power supply line is used；
6, Any correlative laws should be observed in use.；
7, Light should be fixed by the professional electrician,with the
three-core(0.75MM2) mode of
connection :red wire(live line) blue wire(neutral)and the earth
wire.
Flood light applied and used in
1. Square
2. Billboard
3. Parking Lot
4. Garden
5. Building
6. Factory
7. Warehouse
8. Auto Dealer
9. Stadium
10. Gas Station, etc.
