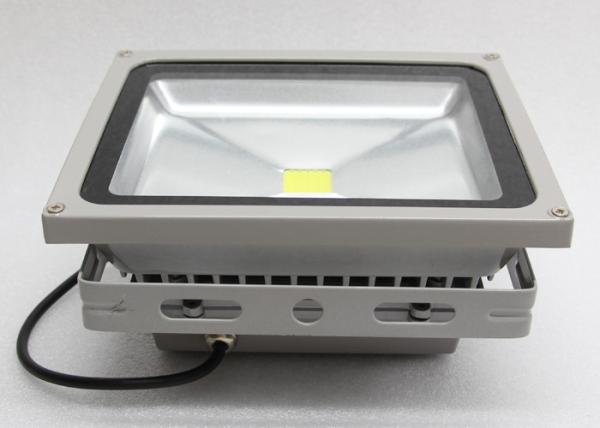

Aluminium 100 - 120lm / W Outdoor Led Flood Lighting High
Brightness
Quick Detail:
Name | 30W Cob Led Flood Light | Application | Advertisement boards |
Color | Grey,black | Feature | Design |
Lamp Luminous Flux(lm) | 3000LM | Certificate | TUV/CE/ROHS |
Using directions:
Because there have the glass fittings, please handle with care when
storing up or carrying .strain stress should be avoided.
Using directions for installation:
1, fix the light on the pole or the mounting surface by screw
though the holes(¢10mm) of the installing support；
2, after the light be fasten,the screws 1A and 1b could be
loosen,and then change the angle of the installing support
so that the installation angle of the light would be adjusted.；
3, keep the light in suitable operation and storage temperature；
4, In order to avoid the electrocution the interface between the
wires could be fully-closed when fixing the light.
5, The corresponding measures could be take for the waterproof and
avoid leak, when the external power supply line is used；
6, Any correlative laws should be observed in use.；
7, Light should be fixed by the professional electrician,with the
three-core(0.75MM2) mode of
connection :red wire(live line) blue wire(neutral)and the earth
wire.
Details:
Commodity: | floodlight series |
Type: | 30w |
AC Input Voltage: | 100 ~ 245V / AC 50-60HZ |
AC input current: | 376mA MAX |
AC power consumption: | 30W/H |
DC Input Voltage: | 28-40V / DC |
DC input current: | 1700 mA / DC constant current |
Light-emitting devices: | High efficent and bright LED module, 1 LED in total |
LED color temp: | 3500K-4000K warm colors 5500K-6000k white
red/green/blue/yellow/purple |
Lumens: | 2900-3000 LM(white) |
Expected Life: | >50,000 hours |
Similar bright light source: | 500W common incandescent light,200W common energy-saving lamps |
Waterproof level: | IP65 |
Environmental temperature : | -30°C ~ +45°C |
Size: | 225*240*185mm |
Net Weight: | 3215g |
instructions: |
|
1.LED is DC driven, low power consumption device.It is
anti-seismic, impact resistant,Non-thermal radiation,secure
stable,reliableWorry free for thermal dissipation, long lifespan,
compact light body ,simple installation chic style, manufacturing
excellence and product serration. |
2.Energy saving,environment-friendly,waste free,completely
recyclable. |
More models for option:
| Model & Power | LED Power (W) | Size (mm) | Input Voltage (V) | CCT (Kelvin) | Lumen Flux(LM) | CRI | Beam Angle | IP Rating | Power Factor |
|
ZL-FL115- 10W | 45mil Bridgelux | 114.5*86 | 85-265VAC 50/60Hz | 2800-6500K | 900-1000 | >75 | 120° | IP65 | >0.96 |
| ZL-FL225-20W | 45mil Bridgelux | 225*185 | 85-265VAC 50/60Hz | 2800-6500K | 1900-2000 | >75 | 120° | IP65 | >0.96 |
ZL-FL290- 50W | 45mil Bridgelux | 290*236 | 85-265VAC 50/60Hz | 2800-6500K | 4900-5000 | >75 | 120° | IP65 | >0.96 |
ZL-FL360- 70W | 45mil Bridgelux | 360*285 | 85-265VAC 50/60Hz | 2800-6500K | 6900-7000 | >75 | 120° | IP65 | >0.96 |
ZL-FL360- 80W | 45mil Bridgelux | 360*285 | 85-265VAC 50/60Hz | 2800-6500K | 7900-8000 | >75 | 120° | IP65 | >0.96 |
| ZL-FL410-100W | 45mil Bridgelux | 410*295 | 85-265VAC 50/60Hz | 2800-6500K | 9000- 10000 | >75 | 120° | IP65 | >0.96 |
| ZL-FL410-150W | 45mil Bridgelux | 410*295 | 85-265VAC 50/60Hz | 2800-6500K | 13500-15000 | >75 | 120° | IP65 | >0.96 |
Application of our IP65 LED Flood Light Reflectores
1. Tunnel, Subway, Underground Lighting;
2. Gymnasium, Sports Stadium Lighting;
3. Building, Billboard Lighting;
4. Gas Station, Garage Lighting;
5. Park, Garden Lighting;
6.50W LED lamp Workshop, Factory Lighting;
7. Warehouse, Storage Lighting;
8. Yard, Square Lighting;
9. Road, Highway Lighting;
10. Station, Dock, Deck, Ship, Boat Lighting;
