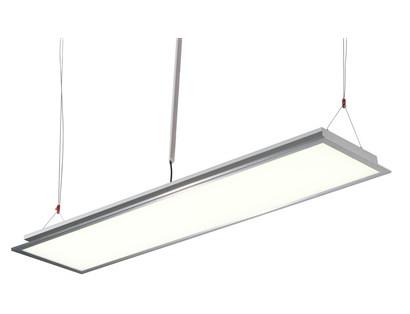

1x4 Feet Ultra Slim Warm White Led Panel Light Fixtures Low Decay
For Office
1. Quick details:
Place of Origin:Guangdong Brand Name:ZLONE Model:ZLP031272WS
Lamp Power Consumption:72W Luminous Flux:3150lm Input
Voltage:85~265VAC
Color Temperature:2700~6500K Working Temperature:-25~55°C
CRI:>80Ra
Lifetime:50000 hours Warranty: 3Years IP Grade: IP44
2. Features of led flat panel lighting 300x1200
(1) Lighting effect:uniform light,wider emitting angle,no dark
zone.
(2) Beautiful appearance:Pure aluminum frame,thin and light.
(3) Health protection:No infrared,no ultraviolet,more comfortable
vision.
(4) Green environmental protection:Do not contain mercury,lead and
other harmful toxic substances,low carbon emission.
(5) Energy saving:Energy saving rate is up to 80%.
(6) Heat dissipation:Strong heat dissipation
performance,Effectively reduce decay.
(7) Lifetime:Lighting lifetime is more than 50,000 hours.
(8) Using easily:Real time lighting and intalled conveniently.
(9) Warranty time:3 years.
3. Main Parameters;
Model Number | ZLP031272WS | Item Type: | flat panel led lighting | Brand | ZLONE |
Size: | 295*1195*10mm | Input Voltage : | 85V~265V AC | Working Lifetime | 50000Hours |
Lamp Power(W): | 72W | Lamp Luminous Efficiency | 85lm/w | Warranty : | 3Years |
Lamp Luminous Flux(lm): | 6000-6400LM | LED QTY: | 242pcs | LED Light Source: | SMD2835 |
CRI (Ra>): | 80 | Working Temperature | -25℃ - +55℃ | LED Brand | EPISTAR |
Color Temperature(CCT): | 2700~7000K | Power factor: | >0.95 | IP Rating: | IP44 |
View Angle: | 120° | Driver Type | Isolated Constant current driver | Certification: | CE, EMC, LVD, RoHS,TUV,SGS |

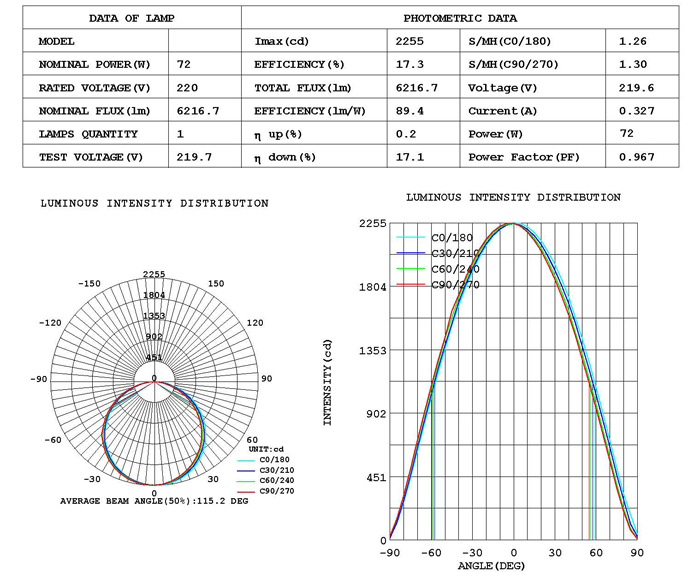

4. 72W IES Test reports as below:
5. Panels connection and Instalaltion:

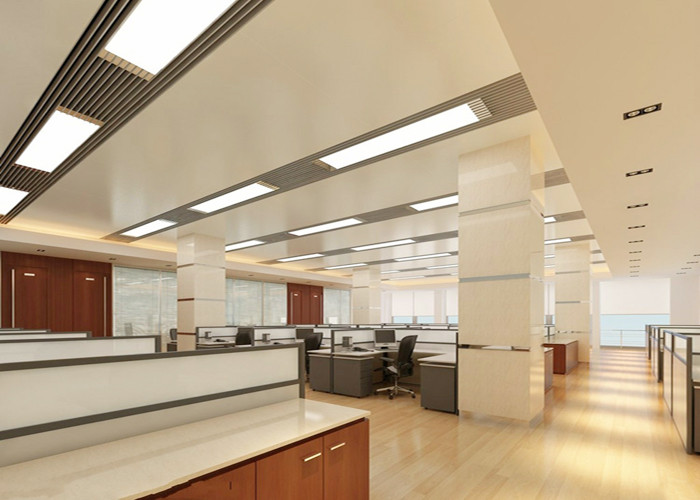

6. Led flat panel lighting 300x1200 Application:
* Meeting rooms/school classrooms/office buildings
* Hospitals/factories/hotels
* Supermarkets/home lighting
* Other commercial and residential places
