    Wateproof IP66 LED Stadium Floodlights High Mast 1000 Watts 140000lm 5 Years Warranty

    Ask Lasest Price
    Brand Name : ZLONE
    Model Number : ZL-SPM-1000W
    Certification : CE, ROHS, TUV,UL,ETL,DLC, SAA
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000pcs/weeks
    Delivery Time : 2-3days
    • Product Details
    • Company Profile

    Wateproof IP66 LED Stadium Floodlights High Mast 1000 Watts 140000lm 5 Years Warranty

    1000W high tower lights, high mast light 1000watts,140000lm IP66 wateproof hockey field and football field lighting, Ip65 Led Module Flood 1000W Led Stadium Light

    LED high mast lighting systems are a great option to use when you need high mast applications, outdoor flood lighting, high way lighting, street lighting and the related. The trick is good lighting design - and that means picking the right optic for the application. We have solved port lighting solutions with poles 450ft apart, spreading the light evenly over the entire area while maintaining required under pole foot candle requirements.
    We have also lit up FIFA using the same lights and a 10 degree optic, shining lights on targets 100 meters away. We understand optics, and how to design the proper light throw with angles and optics.

    ZLONE LED High Mast Lighting with uniform light distributions, high IP ratings, withstanding harsh outside conditions as well as broad temperature ranges from -30°C to +60°C. Our High Mast LED products come with several mounting solutions including pole, yoke, wall or sport mounts and adjustable heads.
    The experts at ZLONE will help you to decide which lighting fixture is right for you. We offer evaluations of the current lighting installation and solutions with our products that meet the requirements of your outdoor LED high mast lighting application.

    Main specs

    ZL-SPM-1000W-LED High Mast LED LightQuick Summar
    Lamp Type: SMD3030 LED1800 Watt Metal Halide Replacement
    Dimensions: L629xW536xH160mmAmbient Op Temp -40C to +80C
    Weight: 26KGIdeal for Light Towers & LED Retrofits
    Total Watts: 1000W98% Transmission High Purity PMMA Optics
    Total Lumens: 140000LMMultiple LED Banks for Heat Dispersion
    Luminous Efficiency: 135-140lm/w135-140 Lumens Per Watt Efficiency
    Beam Configurations: 10° Spot, 25° Wide Spot, 45° Narrow Flood, 60° Flood, or 90° Wide Flood70% Lumen Retention after 50,000 Hours
    LED Color Temperature: Cool White - 5500-6500KUL1012 Compliant
    LED Life Expectancy: 50,000 hoursUL60950-1 Compliant
    Optics Efficiency: 98% - PMMA High Transmittance OpticsCE Certified
    Led Drive %: 90%RoHS Compliant
    Voltage: 110-277V AC 50/60 HzIP66 Rated Waterproof
    Amp Draw: 6.25A @ 120V, 2.71A @ 277VWiring: 2.5` Pigtail w/ Flying Leads
    Materials: Die Cast Aluminum Housing, PMMA OpticsHousing Color: Natural Aluminum
    Mounting: Flat Surface Trunnion Mount U-BracketWaterproof Rating: IP66
    Ambient Temperature Range: -40°C to +80°CSpecial Orders- Requirements
    Warranty: 5 YearsContact us for special requirements


    Write to us NOW for more details and data sheets, IES, pictures, prices for high mast lights led.
    email: sales@zloneled.com

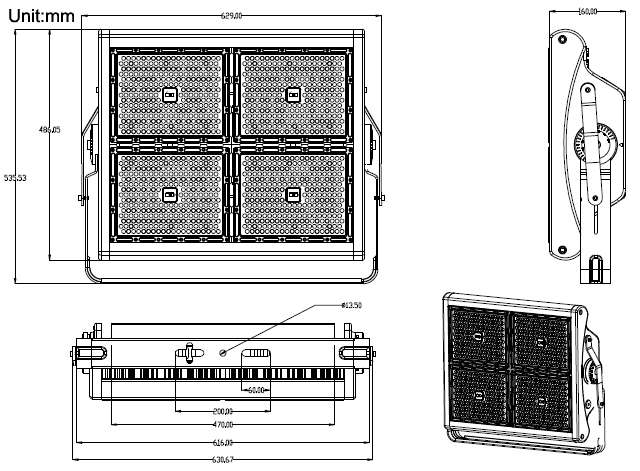

    1000Watt High mast Stadium light Diagram:

    Explosive Pictures 1000watts:


    IES Tests result, 1000watts stadium light efficiency



    Beam angles available: 10° Spot, 25° Wide Spot, 45° Narrow Flood, 60° Flood, or 90° Wide Flood

    Installation of high mast lights/ stadium light 1000watt

    More watts/models available for outdoor high mast, high pole lights

    Power

    LED

    Brand

    Driver BrandLumenSpecificationBeam AngleN.W &
    Product Size(mm)
    400W3030 - 560pcs

    Meanwell HLG/
    Sosen Driver

    56000LM

    PF: >0.95
    CRI:>Ra70
    (optional Ra80)
    CCT: 2700-6500K
    Material:
    1070 Cold Forging Alu+Lens
    5-Year Warranty

    25°/45°/60°/90°
    ( 10° optional with CREE LEDs)
    N.W: 15KG
    L325xW472xH160
    500W

    Meanwell HLG/
    Sosen Driver

    70000LM
    800W3030 - 1120pcs

    Meanwell HLG/
    Sosen Driver

    112000LMN.W: 26KG
    L629xW536xH160
    1000W

    Meanwell HLG/
    Sosen Driver

    140000LM
    1200W3030 - 1680pcs

    Meanwell HLG/
    Sosen Driver

    168000LMN.W: 37KG
    L890xW536xH160
    1500W

    Meanwell HLG/
    Sosen Driver

    210000LM


    Packing details:

    Application of stadium lights, high mast light, led tower lights:
    High Mast floodlights are broad-beamed, high-intensity artificial lights. They are often used to illuminate outdoor playing fields while an outdoor sports event is being held during low-light conditions. More focused kinds are often used as a stage lighting instrument in live performances such as concerts and plays.
