500W led high mast light, led high pole light IP66,outdoor
floodlight lighting,Meanwell HLG driver,5-year warranty 56000lm,
140lm/w high power stadium light
Why LED Stadium Lights?
Stadium lights are a very crucial part of any stadium and other
outdoor sports venues.
These spaces host a variety of events which include sports, flea
markets, concerts, and outdoor games. Having bright stadium lights
is an absolute necessity as they not only provide sufficient
lighting for sportspersons and other people on the field,
they also allow spectators and visitors to move in and out of the
venue easily and safely.
When LED stadium lights are installed in a stadium that lacks a
good source of illumination,
they allow for more events to take place in the space.
They increase the versatility and usefulness of an outdoor sports
venue and provide a lot of value to the operators and owners of the
venue.
Main specs
| ZL-SPM-500W-LED High Mast LED Light | Quick Summar |
| Lamp Type: SMD3030 LED | 1000 Watt Metal Halide Replacement |
| Dimensions: L325xW472xH160mm | Ambient Op Temp -40C to +80C |
| Weight: 14KG | Ideal for Light Towers & LED Retrofits |
| Total Watts: 500W | 98% Transmission High Purity PMMA Optics |
| Total Lumens: 70000LM | Multiple LED Banks for Heat Dispersion |
| Luminous Efficiency: 135-140lm/w | 135-140 Lumens Per Watt Efficiency |
| Beam Configurations: 10° Spot, 25° Wide Spot, 45° Narrow Flood, 60°
Flood, or 90° Wide Flood | 70% Lumen Retention after 50,000 Hours |
| LED Color Temperature: Cool White - 5500-6500K | UL1012 Compliant |
| LED Life Expectancy: 50,000 hours | UL60950-1 Compliant |
| Optics Efficiency: 98% - PMMA High Transmittance Optics | CE Certified |
| Led Drive %: 90% | RoHS Compliant |
| Voltage: 110-277V AC 50/60 Hz | IP66 Rated Waterproof |
| Amp Draw: 6.25A @ 120V, 2.71A @ 277V | Wiring: 2.5` Pigtail w/ Flying Leads |
| Materials: Die Cast Aluminum Housing, PMMA Optics | Housing Color: Natural Aluminum |
| Mounting: Flat Surface Trunnion Mount U-Bracket | Waterproof Rating: IP66 |
| Ambient Temperature Range: -40°C to +80°C | Special Orders- Requirements |
| Warranty: Yes -5 Years | Contact us for special requirements |
Write to us NOW for more details and data sheets, IES, pictures,
prices for high mast lights led.
email: sales@zloneled.com
Installation of high mast lights/ stadium light 500watt

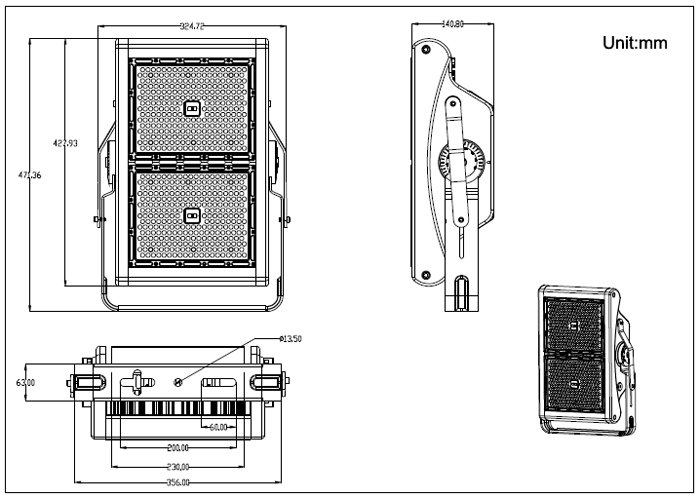

500W Stadium light Diagram:
IES Test results for 500watt led stadium lights
Beam angles available: 10° Spot, 25° Wide Spot, 45° Narrow Flood, 60° Flood, or 90° Wide
Flood
More watts/models available for outdoor high mast, high pole lights
| Power | LED Brand | Driver Brand | Lumen | Specification | Beam Angle | N.W &
Product Size(mm) |
| 400W | 3030 - 560pcs | Meanwell HLG/ Sosen Driver | 56000LM | PF: >0.95
CRI:>Ra70 (optional Ra80)
CCT: 2700-6500K
Material:
1070 Cold Forging Alu+Lens
5-Year Warranty | 25°/45°/60°/90°
( 10° optional with CREE LEDs) | N.W: 15KG
L325xW472xH160 |
| 500W | Meanwell HLG/ Sosen Driver | 70000LM |
| 800W | 3030 - 1120pcs | Meanwell HLG/ Sosen Driver | 112000LM | N.W: 26KG
L629xW536xH160 |
| 1000W | Meanwell HLG/ Sosen Driver | 140000LM |
| 1200W | 3030 - 1680pcs | Meanwell HLG/ Sosen Driver | 168000LM | N.W: 37KG
L890xW536xH160 |
| 1500W | Meanwell HLG/ Sosen Driver | 210000LM |
Packing details:
Application of stadium lights, high mast light, led tower lights:
High Mast floodlights are broad-beamed, high-intensity artificial
lights. They are often used to illuminate outdoor playing fields
while an outdoor sports event is being held during low-light
conditions. More focused kinds are often used as a stage lighting
instrument in live performances such as concerts and plays.
