200Watt LED Linear High Bay 150cm, linear high bay led 5ft, 200w
5feet linear high bay,
UL 200w linear led, high bay 1.5m led linear, dlc linear high bay
5feet
150cm-200Watt LED Linear Highbay adopts super bright qualified
EPISTAR 2835 LED
as light source,it is stable, long life and no UV & IR emission.

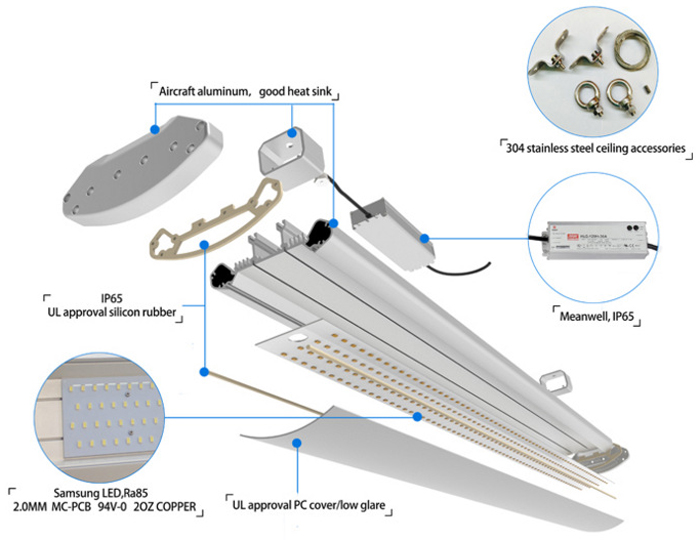

The special designed 6063 aluminum housing is stylish and
fashionable with excellent heat.
Areas of application
--General illumination within temperatures from: -40ºC~+50ºC
--Suitable for 8~12 meters high
--Illumination of production areas
--Traffic zones and corridors
--Industry for Garage, Factory, Warehouse, Badminton court,
airport, tunnel, farm, ect.
Product benefit & Product features
-- Fast and easy installation to replace existing highbay light
-- Up to 50% energy saving comparede to tradion highbay light
-- Lower maintenance cost thanks to over 3 times longer lifetime
-- IP65, Ik10
-- EPISTAR 2835,High CRI of Ra 80~85,Up to 120 lm/w at milky cover
-- Meanwell HLG driver, PF>0.96, THD<12
-- Environmentally friendly, no mercury, No UV, No IR
-- Suspended or Ceiling-mounted Installation Available
-- 5 year warranty
-- TUV, SAA,CE,RoHS Certificates
-- Quick Start instant 100% luminous flux
ZL-HBL-1500-200W = 5ft , 200Watt datasheet
| Total wattage | 200Watt |
| Input voltage | AC100~277V / 50~60Hz |
| Output voltage | 37 V |
| Driver Brand | Meanwell HLG/ ELG optional |
| Output current | 2A |
| Power factor | >0.95 |
| Total harmonic distortion | <12 |
| Photometrical data |
| Color temperature | 2700~6000K |
| Led chip | High Power EPISTAR SMD 2835 |
| Led Quality | 1260pcs |
| Color rendering index Ra | >80Ra |
| Nominal luminous flux | 24,000 -26,000lm |
| Average lamp efficiency | 120-130lm/W |
| Starting time | <0.5 s |
| Rated beam angle(half peak value) | 120º(50%) |
| Temperatures & operating conditions & installation |
| Ambient temperature range | -40~+50ºC |
| Temperature range in operation | -40~+50ºC |
| Installation | Suspended or Ceiling-mounted |
| Lifespan |
| Nominal lamp lift time | 50000 h |
| Rated lamp lift time | 50000 h |
| lumen main fact at of nom. lift time | 0.80 |
| Dimensions & weight |
| Size | 1500x150x68mm |
| Product net weight | 7.0kg |
| Capabilities / Optional | Dimmable & Emergency & Motion sensor |
| Certificates |
| Type of protection | IP65 , IK10 impact resistance |
| Standards | TUV,CE and SAA |
| Packing |
| Qty/Ctn | 2pcs |
| Carton Size | 1570x240x260mmmm |
| CBM/Ctn | 0.08397m3 |
| Carton Gross Weight | 17kg |
200W Linear High Bay 150cm IES Tests >120lm/w
Installation way: Surface Mount, suspension, wall mount
More sizes and wattages avaialble:
| Electric Data |
| Model | ZL-HBL-600-80W | ZL-HBL-900-120W | ZL-HBL-1200-150W | ZL-HBL-1500-200W |
| Power | 80W | 120W | 150W | 200W |
| Input Voltage | AC 90-277V 50/60Hz |
| Photometric Specifications |
| LED Brand | EPISTAR 2835 ( 3030 / Samsung 5630 optional ) |
| Driver Brand | Meanwell Driver HLG/ELG |
| CRI | >80 |
| CCT | 2700-6500K |
| PF | >0.95 |
| Beam Angle | 120° |
| Luminous Efficiency | 120-130lm/w |
| Luminous Flux | 9,600 -10,400lm | 14,400 -15,600lm | 18,000 - 19,500lm | 24,000 -26,000lm |
| LEDs Qty. | 504pcs | 756pcs | 924pcs | 1260pcs |
| Mechanical Specifications |
| IP Rate | IP65,IP66 |
| Working Environment | -40℃~50℃,20%~90% H.R |
| Storage Temperature | -40℃~85℃,10%~90% H.R. |
| Body Material | Aircraft Aluminum + AL PCB |
| Lens Material | PC |
| Dimmable/Control Way | 0-10V, 1-10V dimmable,TRIAC dimmable, Daylight Sensor/ Microwave motion sensor/Zigbee |
| N.W. | 3.5KG | 4.5KG | 6.0KG | 7.0KG |
| Lamp Size | 600x150x68mm | 900x150x68 mm | 1200x150x68 mm | 1500x150x68 mm |
| Lifespan | >50,000 Hours (Ta=30℃@L70) |
| Warranty | 5-Year |
Production pictures
Packing and delivery
Application:
Widely used in Airport, Auto Dealership, Education, Healthcare,
Distribution, Gymnasiums,
Industrial & Warehouse, Recreation & Public Venues.
