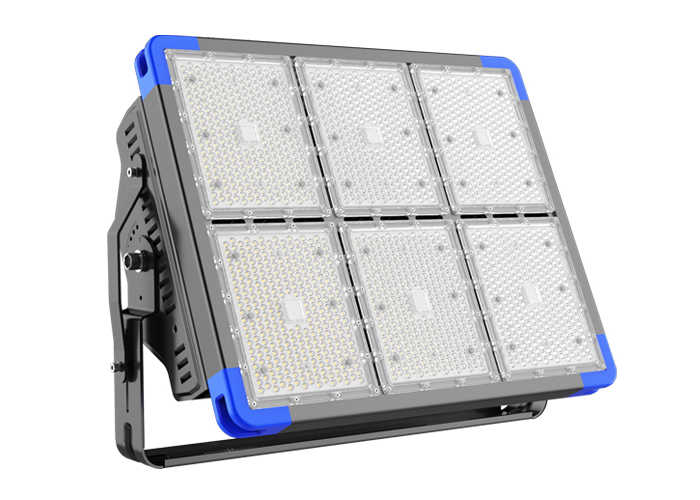

1080Watt LED Module Stadium Floodlight for sport ground,1000watts
sports lighting,outdoor sport fields lights high lumen
Description
1080WATT LED Module Stadium Floodlight is an outdoor lighting, IP66
waterproof.
It is widely used at Stadium, tennis court. 3 kinds of Color
temperature, warm white 3000k, nature white 4000k, cold white
5500-6000k, meet your different needs in lighting.
The LED is and the driver is Meawell driver, all of raw materials
are with super quality, these factors ensured the LED Module
Stadium Flood light has high performance and long life span, and
the High Intensity Die-casting Aluminum Alloy make it looks
perfect.
Important features of quality main points:
for Waterproof IP66 1080W LED Module Stadium Floodlight WW/NW/CW
for tennis court using
- 1680pcs X 6ModuleS (3030). the light resource with super
qualtiy,1680pcs 3030 LED, ensured th high luminous and long life
span, the luminous is 140lm/W.
- High Intensity Die-casting Aluminum Alloy. Keeps the light in a
suitable temperature range.
- MEANWELL driver. MEANWELL was founded in 1982, is one of the
leading brand manufacturers of the Taiwan switching power supply,
and obtained the ISO 9001 certification in 1994. it is not only a
manufacturer of high quality switching power supply, but also wants
to be an excellent power supply channel integration center.
Specifications for 1080WATT LED Module Stadium Floodlight
| ZL-YPM-1080W-LED High Mast LED Light | Quick Summar |
| Lamp Type: SMD3030 LED 1680pcs | 2000 Watt Metal Halide Replacement |
| Dimensions: L670xW560xH200mm | Ambient Op Temp -40C to +80C |
| Weight: 37KG | Ideal for Light Towers & LED Retrofits |
| Total Watts: 1080Watt | 98% Transmission High Purity PMMA Optics |
| Total Lumens: 151200LM | Multiple LED Banks for Heat Dispersion |
| Luminous Efficiency: 135-140lm/w | 135-140 Lumens Per Watt Efficiency |
| Beam Configurations: 10° Spot, 25° Wide Spot, 45° Narrow Flood, 60°
Flood, or 90° Wide Flood | 70% Lumen Retention after 50,000 Hours |
LED Color Temperature: 2700-6500K
Cool White - 5500-6500K | UL1012 Compliant |
| LED Life Expectancy: 50,000 hours | UL60950-1 Compliant |
| Optics Efficiency: 98% - PMMA High Transmittance Optics | CE Certified |
| Led Drive %: 90% | RoHS Compliant |
| Voltage: 110-277V AC 50/60 Hz | IP66 Rated Waterproof |
| Amp Draw: 6.25A @ 120V, 2.71A @ 277V | Wiring: 2.5` Pigtail w/ Flying Leads |
| Materials: Die Cast Aluminum Housing, PMMA Optics | Housing Color: Natural Aluminum |
| Mounting: Flat Surface Trunnion Mount U-Bracket | Waterproof Rating: IP66 |
| Ambient Temperature Range: -40°C to +80°C | Warranty: 5 Years |
Write to us NOW for more details and data sheets, IES, pictures,
prices for high mast lights led.
email: sales@zloneled.com
More watts/models available for outdoor high mast, high pole lights
Packing details:
| Power | LED Brand | Driver Brand | Lumen | Specification | Beam Angle | N.W &
Product Size(mm) |
| 200W | 3030 - 280pcs | Meanwell HLG/ Sosen Driver | 27000LM | PF: >0.95
CRI:>Ra70(optional Ra80)
CCT: 2700-6500K
Material:
1070 Cold Forging Alu+Lens
5-Year Warranty | 25°/45°/60°/90°
( 10° optional with CREE LEDs) | N.W: 6.5KG
L300xW250xH120 |
| 360W | 3030 - 560pcs | Meanwell HLG/ Sosen Driver | 50400LM | N.W: 13KG
L460xW300xH150 |
| 540W | 3030 - 840pcs | Meanwell HLG/ Sosen Driver | 75600LM | N.W: 19KG
L670xW300xH15 |
| 720W | 3030 - 1120pcs | Meanwell HLG/ Sosen Driver | 100800LM | N.W: 23KG
L560xW460xH150 |
| 1080W | 3030 - 1680pcs | Meanwell HLG/ Sosen Driver | 151200LM | N.W: 37KG
L670xW560xH200 |
| 1440W | 3030 - 2240pcs | Meanwell HLG/ Sosen Driver | 201600LM | N.W: 47KG
L880xW560xH200 |
Installation way:
Packing details:
| Model | Carton Size (mm) | QTY(PC) | N.W(KG) | G.W(KG) |
| ZL-YPM-200W | 405*415*245 | 1 | 6.5 | 7.5 |
| ZL-YPM-360W | 600*415*245 | 1 | 13.0 | 14.0 |
| ZL-YPM-540W | 815*415*245 | 1 | 19.0 | 20.0 |
| ZL-YPM-720W | 700*570*255 | 1 | 23.0 | 25.0 |
| ZL-YPM-1080W | 850*680*280 | 1 | 37.0 | 39.0 |
| ZL-YPM-1440W | 1060*680*280 | 1 | 47.0 | 50.0 |
Application of stadium lights, high mast light, led tower lights:
High Mast floodlights are broad-beamed, high-intensity artificial
lights. They are often used to illuminate outdoor playing fields
while an outdoor sports event is being held during low-light
conditions. More focused kinds are often used as a stage lighting
instrument in live performances such as concerts and plays.
